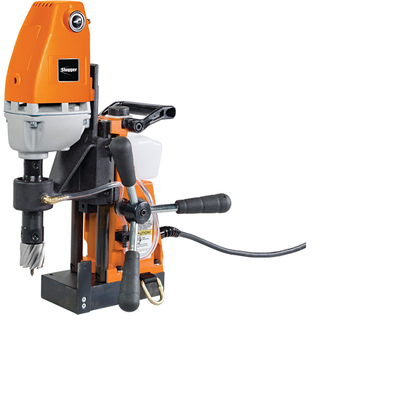

FEIN HM2 Slugger JHM Holemaker III

Made in USA

The Slugger JHM Holemaker III is a reliable, powerful drill capable of mag base drilling up to
1 3/8 ” holes, 2 inches deep. The small size and low weight make it ideal for continual use on the job site.

Full featured, professional drill.
Compact 30 lb (13.6 kg) package for versatility and convenience.
Spindle support maintains hole tolerances.
Illuminated control panel
Concealed motor wiring
Right or left hand feed handles
Rail slide system
Contact and chip guard
Gravity-fed coolant system
MagBotTM removable coolant bottle
Spring arbor for slug ejection

Includes :
1 case
coolant container
1 safety strap
chip guard
2 centering pins
1 – 5 mm hexagon wrench
1 carry handle

Technical Data :

Max. cutter diameter 1 3/8 ”
Max. cutter drilling depth 2 ”
Power input 1,380 Watts
Motor 120 Volts / 11.5 Amps
No load speed 450 RPM
Load speed 330 RPM
Stroke 4 1/4 ”
Arbor size 3/4 ” Weld on shank
Magnetic holding force 1700 lbs.
Weight 30 lbs.
Magnet foot dimensions 3 3/4 ” x 7 ”
Height 18 1/4 ”
Width 7 3/4 ”
Length (w/handle) 13 3/4 “
